J11B internal thread ammonia shut-off valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
J11B ammonia internal thread globe valve body, valve cover material using gray iron, sealing surface using Babbitt alloy, tetrafluoro, nylon, valve stem using high quality carbon steel. It is light in volume, small in resistance and easy to install. It can be widely used in refrigeration system of hydropower station, food, chemical industry and aquatic products.
Main uses
Ammonia internal threaded globe valve is installed in refrigeration system equipment or pipeline, suitable for temperature - 40 ~ + 120 degrees Celsius ammonia, ammonia liquid medium pipeline and liquefied gas pipeline for opening and closing. It is mainly suitable for freezing, refrigeration, chemical, petroleum, food, smelting, liquefied petroleum gas and other units.
Scope of use
Range: DN15 ~ DN50
Pressure range: 1.6MPa
Temperature range: -40 C ~ 120 C
Medium range: propane, alkene, methanol, ethane, gas, liquid ammonia, liquefied natural gas and other cryogenic media.
Material of main parts
零件名稱 | 閥體、閥蓋 | 密封圈 | 填料 | 填料壓蓋 | 閥桿 | 墊片 |
J11B-25Z | 灰鑄鐵 | 巴氏合金 | 聚四氟 乙 烯 | 碳鋼 | 聚四氟 乙 烯 | |
J11F-25Z | 灰鑄鐵 | 聚四氟乙烯 | ||||
公稱壓力PN（MPA） | 試驗壓力PS（MPa） | 適用介質(zhì) | 適用溫度（℃） | |
2.5 | 3.8 | 氨氣、 氨液等 NH3 | 巴氏合金 -40℃ +150℃ | 四氟 -40℃ +200℃ |

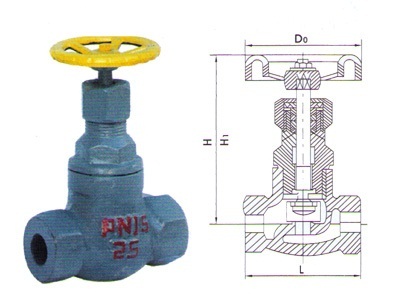

螺紋截止閥結(jié)構(gòu)圖.jpg)
口徑 DN | 總 長 （L） | 閥體長（L） | 全 開（H） | 全關（H1） | 手輪直徑（D0） | 連接方式 |
DN10 | 80 | 84 | 140 | 125 | 80 | 3/3”管柱螺紋 |
DN15 | 100 | 105 | 160 | 140 | 100 | 1/2”管柱螺紋 |
DN20 | 108 | 110 | 175 | 155 | 100 | 3/4”管柱螺紋 |
DN25 | 124 | 130 | 190 | 165 | 120 | 1”管柱螺紋 |
DN32 | 140 | 140 | 200 | 140 | 11/4”管柱螺紋 |
