ZZYP self operated pressure regulating valve

Quality stability: the implementation of the whole process of quality control, meticulous, all aspects of detection!
Reasonable price: effective internal cost control, reduce expenses, let the benefit of customers!
Fast delivery: advanced production line, sufficient stock, shorten the delivery time!

sell：021-32051999
sell：021-32050777
fax：021-66099555

Details

Product Introduction
Service Promise
Ordering Process

ZZY self-operated pressure regulating valve does not need additional energy. It uses the energy of the regulated medium itself as the power source, introduces the actuator to control the valve core position, changes the pressure difference and flow at both ends, and makes the pressure in front (or behind) of the valve stable. It has the advantages of sensitive action, good sealing and small fluctuation of pressure setting point. It is widely used in automatic control of gas, liquid and steam medium pressure reduction and pressure relief and pressure stabilization.

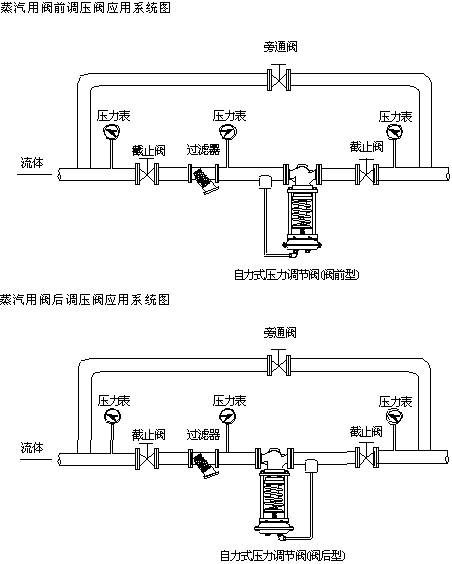

This series of products have single seat (ZZYP), sleeve (ZZYM), double seat (ZZYN) three structures; the actuator has film type, piston type two; action type with pressure relief valve after pressure regulation (type B) and pressure relief valve before pressure regulation (type K). The nominal pressure grade of the product is PN16, 40, 64; the valve body diameter range DN20-300; the leakage grade is grade II, grade IV and grade VI; the flow characteristic is fast opening; the pressure is regulated from 15-2500 kPa. It can meet user's requirements according to needs.

Characteristics of self operated pressure regulating valve

Self-powered pressure regulator can work in a place without electricity and gas without additional energy, which is convenient and energy-saving.

The pressure range is fine and intersecting, and the adjustment precision is high.

The pressure setting value can be continuously set during operation.

For pressure adjustment after valve, the ratio between front pressure and back pressure is 10:1~10:8.

Rubber diaphragm type detection, actuating mechanism has high detection accuracy and sensitive action.

The pressure balancing mechanism is adopted to make the control valve sensitive and precise.

Main parts material of self operated pressure regulating valve

valve body: zg230 - 450 zg1cr18ni9ti zgocr18ni12m02ti

spool: 1cr18ni9ti 0cr18ni12m02ti

valve seat: 1cr18ni9ti 0cr18ni12m02ti

Stem: 1cr18ni9ti 0cr18ni12m02ti

Membrane cover: a3 a3Steel coated with tetrafluoroethylene stainless steel

Filler: PTFE flexible graphite

Rubber diaphragm: butadiene, ethylene propylene, fluorine, oil resistant rubber

Main technical parameters of self operated pressure regulating valve

Nominal path DN(mm)		20	25		32		40		50		65	80		100		125		150		200	250		300
Rated discharge coefficient Kv		7	11		20		30		48		75	120		190		300		480		760	1100		1750
Rated travel (mm)		8			10				14		20			25		40				50	60		70
Nominal pressure PN(MPa)		1.6 、 4.0 、 6.4
Pressure regulating range (kPa)		15 ～ 50 40 ～ 80 60 ～ 100 80 ～ 140 120 ～ 180 160 ～ 220 200 ～ 260 240 ～ 300 280 ～ 350 330 ～ 400 380 ～ 450 430 ～ 500 480 ～ 560 540 ～ 620 600 ～ 700 680 ～ 800 780 ～ 900 880 ～ 1000 950 ～ 1500 1000 ～ 2500
Flow characteristics		Fast open
Adjustment precision ( ％ )		± 5
Use of temperature ( ℃ )		≤ 350
Allow Leakage	Hard seal (l/h)	Single seat: less than 10-4 valve rated capacity (grade IV); double seat, sleeve less than 5X10 -3 valve rated capacity (II level)
	Soft seal (ml/h)	0.15		0.30		0.45		0.60		0.90			1.7		4.0		6.75		11.10			16.0
Pressure reduction ratio	Maximum	10
	Minimum	1.25

Main dimensions of self operated pressure regulating valves

Nominal path 0N			20	25	32	40	50	65	80	100	125	150	200	250	300
Flange nozzle size B			383		512		603	862		1023	1380		1800	2000	2200
Flange end face distance L			150	160	180	200	230	290	310	350	400	480	600	730	850
Pressure Force Tune Section Fan around kPa	15 一 140	H	475		520		540	710		780	840	880	915	940	1000
		A	280		308
	280 — 500	H	455		500		520	690		760	800	870	880	900	950
		A	230
	120 — 300	H	450		490		510	680		750	790	860	870	890	940
		A	176					194			280
	480 — 1000	H	445		480			670		740	780	850	860	880	930
		A	176					194			280
	600 一 1500	H	445		570		600	820		890	950		1000	1100	1200
		A	85		96
	1000 — 2500	H	445		570		600	820		890	950		1000	1100	1200
		A	85		96
weight kg			26		37		42	72	90	114	130	144	180	200	250
Guide pipe nipple thread			M16X1.5
