FJ41 throttle stop vent valve

Quality stability: the implementation of the whole process of quality control, meticulous, all aspects of detection!
Reasonable price: effective internal cost control, reduce expenses, let the benefit of customers!
Fast delivery: advanced production line, sufficient stock, shorten the delivery time!

sell：021-32051999
sell：021-32050777
fax：021-66099555

Details

Product Introduction
Service Promise
Ordering Process

FJ41 type PN16~PN160 throttle cut-off valve is widely used as closed circuit device in oil, natural gas, gas, liquefied petroleum gas and pipelines of oil refining, airport, chemical industry, oil and gas storage and transportation.

Features of throttle stop valve

1. The valve is a new type of throttling, cut-off and emptying product. The valve uses cage-shaped labyrinth to throttle. It has the characteristics of multi-stage throttling effect, obvious throttling effect, reliable sealing and convenient operation and maintenance.

2. The valve adopts double seal (hard and soft seal) to make the seal reliable, the carbide cover can be more resistant to air erosion and wear resistance, and the double seal can achieve zero leakage under the condition of high pressure gas medium. Long service life of valves

3. The sealing surface of the valve seat is taper sealed, which is good for the valve itself to clean the dirt attached to the sealing surface.

4. The valve disc is equipped with a balancing hole and a piston seal, which ensures stable operation under the condition of opening/closing full differential pressure, easy opening and flexible opening and small opening/closing torque.

5. The throttle cut-off valve and the double-acting throttle valve have the function of throttle and cut-off (sealing is zero leakage) at the same time, the throttle part is separated from the sealing surface, so as to reduce the erosion of the airflow to the seal.

6. Dual-acting throttle globe valve also has multi-stage throttle function, throttle pressure difference is large, can be applied to high pressure throttle and cut-off.

7, the packing uses the V shape packing structure with the self sealing ability, does not need to adjust, opens and closes extremely lightly. There is an auxiliary seal oil injection structure in the stuffing box, which ensures reliable sealing performance of the valve packing.

8, the valve can be on-line maintenance, pipeline can replace a series of vulnerable parts such as fillers under pressure.

9. The valve has a larger drain hole at the bottom of the valve. When necessary, the valve must be opened to clean the dirt inside the valve.

Performance parameters of throttle stop vent valve

型號(hào)	工作壓力（MPa）	適用溫度（℃）	適用介質(zhì)	閥體材料
FJ41-16	1.6	≤350	水、蒸汽、油品等	碳鋼
FJ41-25	2.5
FJ41-40	4.0
FJ41-64	6.4
FJ41-100	10.0
FJ41-160	16.0

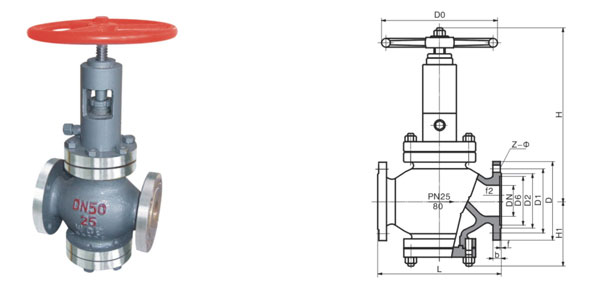

Main dimensions of throttle stop valve

PN (MPa)	DN (mm)	尺寸(mm)				重量（kg)
PN (MPa)	DN (mm)	L	H	H1	D0	重量（kg)
1.6	25	216	243	86	180	17
	40	230	265	108	250	24
	50	230	346	115	250	27
	80	310	409	146	300	52
	100	350	433	163	300	60
	150	480	521	202	350	125
	200	600	594	292	350	165
	250	730	621	355	400	285
2.5	25	216	243	86	180	17
	40	230	265	108	250	24
	50	230	346	115	250	27
	80	310	409	146	300	55
	100	350	433	163	300	66
	150	480	521	202	350	140
	200	600	594	292	350	180
	250	730	621	355	400	310
4.0	25	216	243	86	180	20
	40	230	265	108	250	29
	50	230	346	115	250	32
	80	310	409	146	300	67
	100	350	433	163	300	80
	150	480	521	202	350	168
	200	600	594	292	350	215
	250	730	621	355	400	372

PN (MPa)	DN (mm)	尺寸(mm)				重量(kg)
PN (MPa)	DN (mm)	L	H	H1	D0	重量(kg)
6.4	25	216	243	86	180	20
	40	230	265	108	250	29
	50	230	346	115	250	32
	80	310	409	146	300	67
	100	350	433	163	300	80
	150	480	521	202	350	168
	200	600	594	292	350	215
	250	730	621	355	400	372
10.0	25	230	245	78	200	29
	40	260	265	106	250	42
	50	300	287	110	300	55
	80	380	409	152	350	95
	100	430	433	169	350	120
	150	559	531	225	400	240
	200	660	709	321	500	310
	250	787	817	399	500	530
16.0	25	230	215	78	200	35
	40	260	265	105	250	50
	50	300	237	110	300	65
	80	390	414	155	350	116
	100	450	440	175	350	145

The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards：

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service：

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service：

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service：

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.：

a、Structure length；

b、Connection Type；

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range；

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.

Order Process：

1、Customer purchase list fax to021-33872143，Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google：

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.：

a、Structure length；

b、Connection Type；

c、Nominal diameter, full diameter, reduced diameter, pipe size；

d、Operating medium and temperature, pressure range；

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time.， The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service：

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service：

1、"Qigao" product quality period is from the factory12Month, practice“Three packs”Service (return, replacement, warranty)。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

All text, data and pictures in this article are for reference only.FJ41 throttle stop vent valvePlease contact us at 4000-700-665 for details of performance, size and price.
