YJ41H antibiotic stop valve

Quality stability: the implementation of the whole process of quality control, meticulous, all aspects of detection!
Reasonable price: effective internal cost control, reduce expenses, let the benefit of customers!
Fast delivery: advanced production line, sufficient stock, shorten the delivery time!

sell：021-32051999
sell：021-32050777
fax：021-66099555

Details

Product Introduction
Service Promise
Ordering Process

YJ41H antibiotic globe valve is mainly used in bio-fermentation, pharmaceutical and beer fermentation, amino acid fermentation, bio-pesticide fermentation, bio-fertilizer fermentation, various antibiotic fermentation, biological, biochemical, chemical and pharmaceutical materials, water, steam, cold control and other fields, the bottom can be opened according to customer needs, high-temperature resistance. The service life is long and no dead ends reach zero leakage level.

Product features

1., it has strong bactericidal and detoxification function to prevent bacteria from being infected.

2. the gasket is made of high temperature resistant PTFE composite material. (maximum temperature up to 120 degrees Celsius)

3. the gasket, the middle sealing ring of the valve body and the stem packing are all made of high quality PTFE material. Long life and corrosion resistance to ensure no internal and external leakage.

4. streamlined flow path makes the pressure loss small.

5. the gasket can be replaced, the disassembly is more convenient and the maintenance cost is low.

Design and manufacturing standards for antibiotic shut-off valves

Design and manufacture: GB/T12235

Flange size: JB/T79.1

Structure length: GB/T12221

Inspection and testing: JB/T9092

Main performance specifications for antibiotic shut-off valves

公稱壓力	1.6 MPa
試驗壓力	強度試驗	2.4 MPa
	密封試驗	1.76 MPa
	上密封試驗	1.76 MPa
	氣密封試驗	0.6 MPa
MAX工作溫度	120 ℃
適用介質	水、蒸汽、食品等

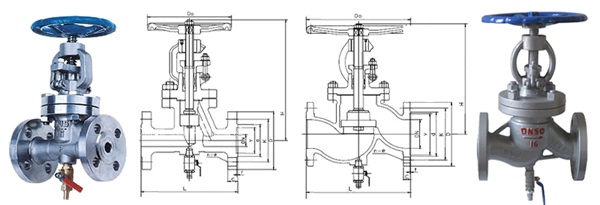

Main dimensions of antibiotic shut-off valves

公稱壓力 PN(MPa)	公稱通徑 DN（mm）	尺寸
公稱壓力 PN(MPa)	公稱通徑 DN（mm）	L	D	K	d	Y	C	f	n-φ	H	D0
1.6	10	130	90	60	40	-	14	2	4-14	163	100
	15	130	95	65	45	-	14	2	4-14	163	100
	20	150	105	75	55	-	14	2	4-14	165	100
	25	160	115	85	65	-	14	2	4-14	198	125
	32	180	135	100	78	-	16	2	4-18	225	160
	40	200	145	110	85	-	16	3	4-18	330	200
	50	230	160	125	100	-	16	3	4-18	350	240
	65	290	180	145	120	-	18	3	4-18	400	280
	80	310	195	160	135	-	20	3	8-18	405	280
	100	350	215	180	155	-	20	3	8-18	415	320
	125	400	245	210	185	-	22	3	8-18	460	360
	150	480	280	240	210	-	24	3	8-23	510	400
	200	600	335	295	265	-	26	3	14-23	710	400
2.5	10	130	90	60	40	-	16	2	4-14	163	100
	15	130	95	65	45	-	16	2	4-14	163	100
	20	150	105	75	55	-	16	2	4-14	165	100
	25	160	115	85	65	-	16	2	4-14	198	125
	32	180	135	100	78	-	18	2	4-18	225	160
	40	200	145	110	85	-	18	3	4-18	330	200
	50	230	160	125	100	-	20	3	4-18	350	240
	65	290	180	145	120	-	22	3	8-18	400	280
	80	310	195	160	135	-	22	3	8-18	405	280
	100	350	230	190	160	-	24	3	8-23	415	320
	125	400	270	220	188	28	3	8-25	460	360
	150	480	300	250	218	-	30	3	8-25	510	400
	200	600	360	310	278	-	34	3	12-25	710	400
